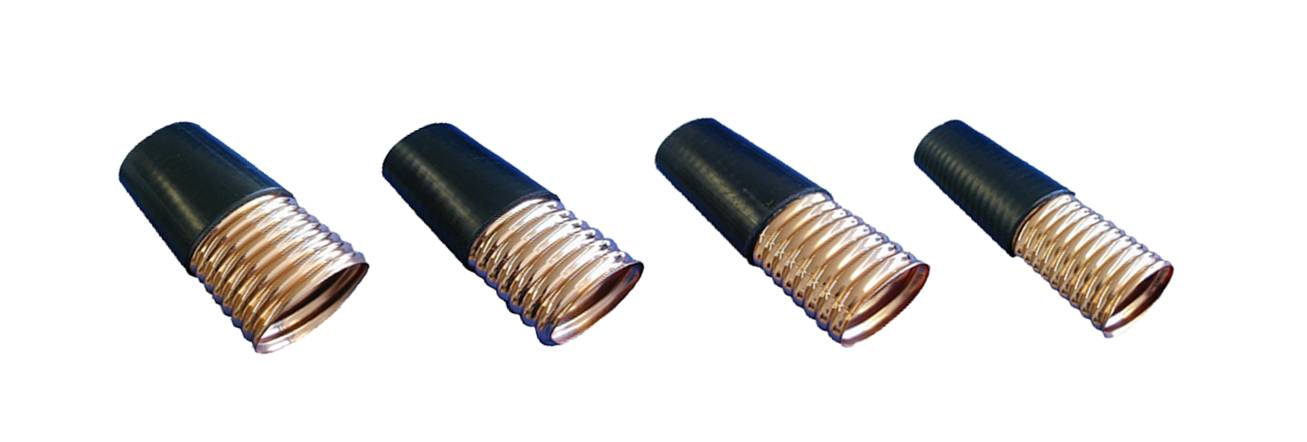

| Wave Guide Cables |
|
Microwave radio links rely on the efficient transmission of RF energy between the radio equipment and the antenna at each site in the network. At frequencies above 2GHz, waveguides have lower attenuation than coaxial cables, and are deployed as standard practice unless ‘integrated antennas’ can be used. In this section we are offering RFS Products. |
 |
|
Frequency GHZ |
1.7 - 2.3 |
2.3 - 3.1 |
3.0 - 4.2 |
3.6 - 5.0 |
3.9 - 5.0 |
4.5 - 6.4 |
5.0 - 7.1 |
5.9 - 8.5 |
8.1 - 11 |
9.3 - 13 |
10 - 15 |
13 - 19 |
16 - 23 |
19 - 26 |
24 - 33 |
|
RFS |
E20 |
E30 |
E38 |
E46 |
ES46 |
E60 |
E65 |
E78 |
|
E130 | E150 | E185 | E220 | E250 | E300 |
|
FLEXWELL is offered in three versions:
Standard: standard waveguide is recommended for low and medium capacity radio relay systems Standard. premium (low VSWR) : premium elliptical waveguide is recommended for high capacity radio systems. Overmoded’ (low attenuation): Overmoded waveguide is used when long distances or restricted power budgets call for lower than normal attenuation |
 |
|||
| RFS Wave Guide Data Sheet |
